K78L15-500R3

Symbol Micros: DC K78L15-500r3

102995

DC K78L15-500r3

Contractor Symbol:

Case : MNp-10.0x5.4-3

Datasheet

Technical drawing Add to favourites

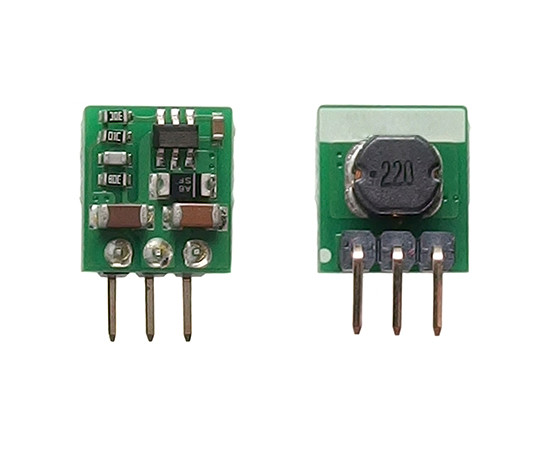

Switching Regulator, 500mA, Vin 8÷36V, Vout ±15V, EFF 90/93% Replacement for AMSRO-7815-NZ

Parameters

Output current [A]:	500mA
Input voltage range:	8~36V
Output voltage [V]:	15V
Input voltage:	24V
Case:	SIP
Regulated:	NO

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: K78L15-500R3 RoHS Case style: MNp-10.0x5.4-3 Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,6868	1,3442	1,1515	1,0349	0,9921

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Output current [A]:	500mA
Input voltage range:	8~36V
Output voltage [V]:	15V
Input voltage:	24V
Case:	SIP
Regulated:	NO
