KW3-24S05ER3

Symbol Micros: DC KW3-24S05ER3

500595

DC KW3-24S05ER3

Contractor Symbol:

Case : MNp-22.0x9.5-8

Datasheet

Technical drawing Add to favourites

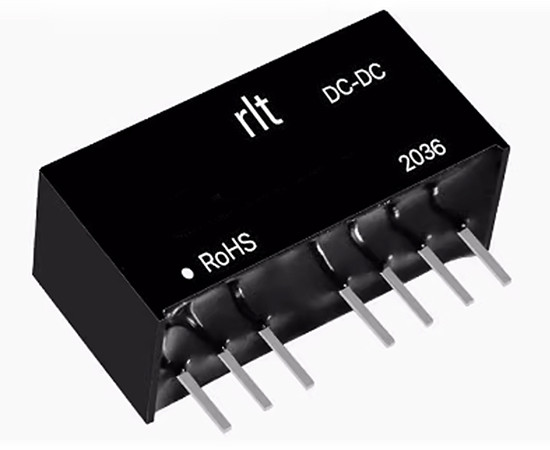

DC/DC converter; isolated; regulated; single output; 3W; Vin 18V~36V; Vout 5V; Iout 600mA; isolation 1500V; efficiency 78%; RoHS; Odpowiednik: WRB2405S-3WR2; KW3-24S05ER3; DAV3-2411; TP2L24S05S-3W; TMR 3-2411; TMR3-2411;

Parameters

Output current 1:	600mA
Input voltage range:	18V ~ 36V
Power:	3,0W
Insulation breakdown voltage:	1500V
Secondary voltage 1:	5V

All parameters

Manufacturer:: AIPULNION Manufacturer part number: KW3-24S05ER3 RoHS Case style: MNp-22.0x9.5-8 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	9+	20+	100+
Net price (EUR)	4,4227	3,9303	3,6554	3,5340	3,4012

Add to comparison tool Add inquiry (RFQ)

Packaging:
9/20 Quantity (multiple: 1)

- +

• Parameters

Output current 1:	600mA
Input voltage range:	18V ~ 36V
Power:	3,0W
Insulation breakdown voltage:	1500V
Secondary voltage 1:	5V
