LS10-13B24R3

Symbol Micros: DC LS10-13b24r3

332964

DC LS10-13b24r3

Contractor Symbol:

Case : MNs-32.0x17.2x15.05

Datasheet

Technical drawing Add to favourites

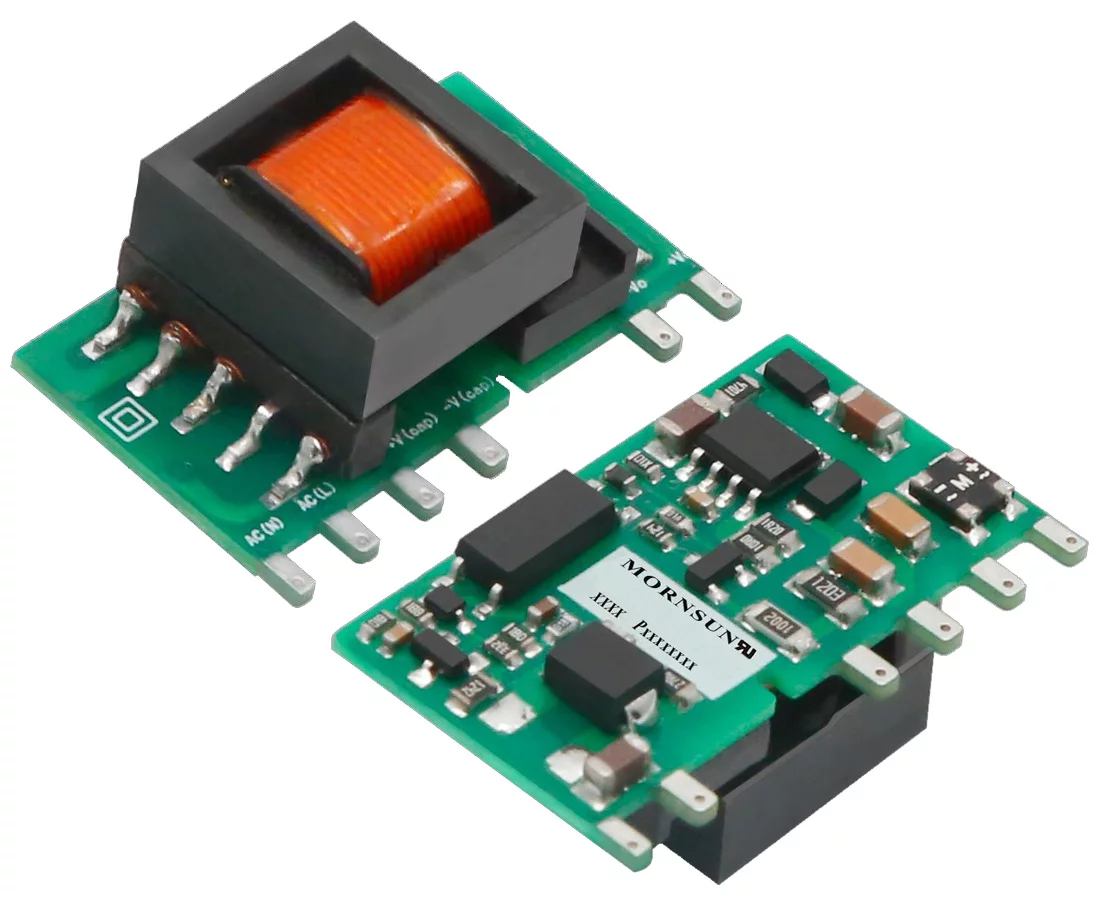

AC/DC Converter, 10W, Vout/Iout 24V/420mA, Viso 3000VAC, EFF 83%

Parameters

Output current 1:	420mA
Power:	10W
Input voltage range:	85~305 (100~430VDC)
Secondary voltage 1:	24V
Insulation breakdown voltage:	3000V

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-05-08

Quantity of pcs.: 20

• Parameters

Output current 1:	420mA
Power:	10W
Input voltage range:	85~305 (100~430VDC)
Secondary voltage 1:	24V
Insulation breakdown voltage:	3000V
