NWV75-05S12AN

Symbol Micros: DC NWV75-05S12AN

500706

DC NWV75-05S12AN

Contractor Symbol:

Case : MNp-11.6x6.0-4

Datasheet

Technical drawing Add to favourites

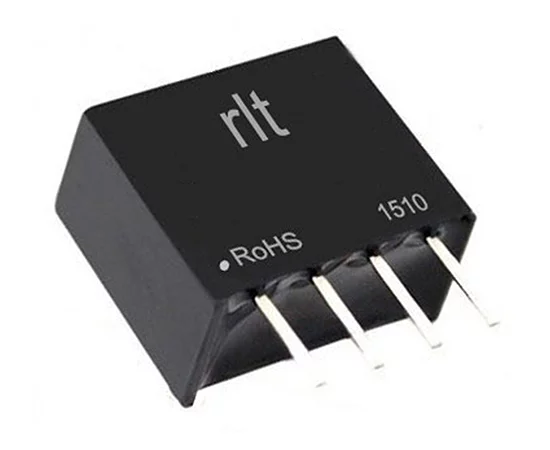

DC/DC converter; isolated; single output; 0.75W; Vin 4.75V~5.25V; Vout 12V; Iout 62mA; isolation 1500V; 260kHz; -40°C~85°C; efficiency 75%; RoHS; Substitute: AM1SR-0512SJZ; B0512S-1WR3; DBE1-0513;

Parameters

Input voltage range:	4,75V ~ 5,25V
Output current 1:	62mA
Power:	0,75W
Insulation breakdown voltage:	1500V
Secondary voltage 1:	12V

All parameters

Manufacturer:: AIPULNION Manufacturer part number: NWV75-05S12AN RoHS Case style: MNp-11.6x6.0-4 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,9380	1,6185	1,4309	1,3429	1,2920

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	4,75V ~ 5,25V
Output current 1:	62mA
Power:	0,75W
Insulation breakdown voltage:	1500V
Secondary voltage 1:	12V
