PTN78060WAH

Symbol Micros: DC PTN78060wah

179492

DC PTN78060wah

Contractor Symbol:

Case : Rys.PTN78060-DIP7

Datasheet

Technical drawing Add to favourites

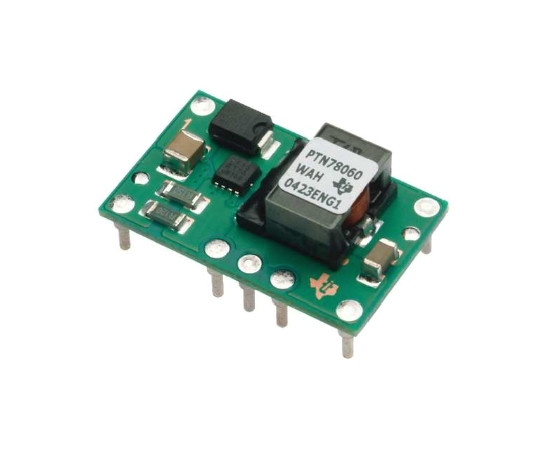

Switching Regulator; 3A; 45W; Vin 7V~36V; Vout 2,5V~12,6V; Efficiency: 94%; -40°C ~ 85°C;

Parameters

Output current [A]:	3A
Input voltage range:	7 - 36V
Output current 1:	0A
Input voltage:	36V
Output voltage range [V]:	2.5 - 12.6V
Efficiency:	94%
Power:	45W

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: PTN78060WAH RoHS Case style: Rys.PTN78060-DIP7 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	35,0423	31,9712	29,6794	27,5250	26,3562

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Output current [A]:	3A
Input voltage range:	7 - 36V
Output current 1:	0A
Input voltage:	36V
Output voltage range [V]:	2.5 - 12.6V
Efficiency:	94%
Power:	45W
Output voltage [V]:	12,6V
Secondary voltage 1:	0V
Output current symetric [mA]:	-
Insulation breakdown voltage:	0V
Secondary voltage 2:	0V
Output current 2:	0A
Symetric output votage:	-
