TE5650AN

Symbol Micros: DC TE5650an

106961

DC TE5650an

Contractor Symbol:

Case : MNd-26.0x9.5-18tem

Datasheet

Technical drawing Add to favourites

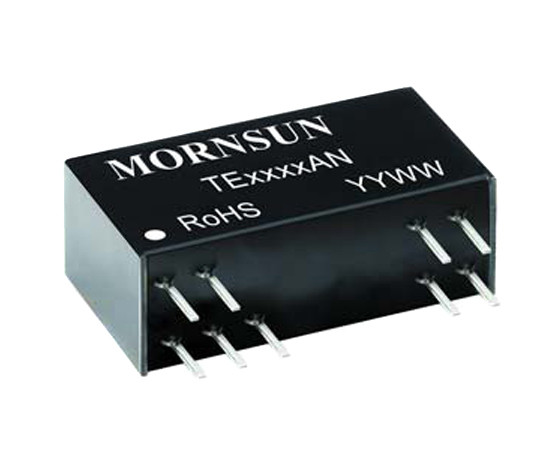

Signal Conditioning Module, 12V, Sin ±10V, Sout 0÷5V, Viso 2000VAC, -40÷85°C

Parameters

Supply voltage:	12V
Input signal:	+/-10V
Output signal:	0~5V
Isolated output:	None
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: TE5650AN RoHS Case style: MNd-26.0x9.5-18tem Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	2+	4+	10+	30+
Net price (EUR)	11,0363	9,8573	9,0175	8,2690	7,7170

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

Manufacturer:: MORNSUN - EOL Manufacturer part number: TE5650AN RoHS Case style: MNd-26.0x9.5-18tem Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	6+	15+	30+
Net price (EUR)	8,9474	8,3485	8,1053	7,8901	7,7801

Add to comparison tool Add inquiry (RFQ)

Packaging:
3 Quantity (multiple: 1)

- +

• Parameters

Supply voltage:	12V
Input signal:	+/-10V
Output signal:	0~5V
Isolated output:	None
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP
