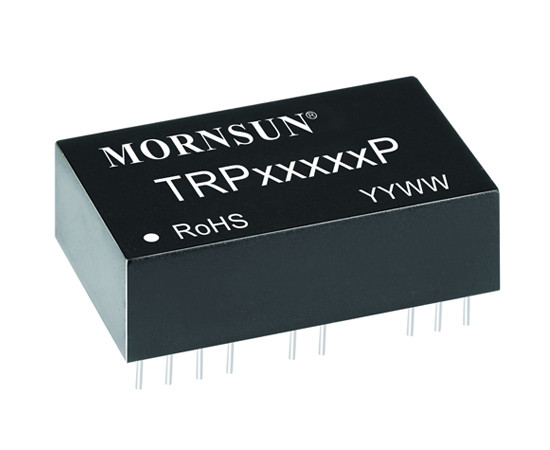

TRP15130P

Symbol Micros: DC TRP15130p

106652

DC TRP15130p

Contractor Symbol:

Case : MNd-31.8x20.3-24trp

Datasheet

Technical drawing Add to favourites

Pt100 RTD Isolated Module, 24V, Sin Pt100 (0÷100°C), Sout 4÷20mA, Viso 2000VAC, -40÷85°C

Parameters

Supply voltage:	24V
Input signal:	Pt100
Output signal:	4~20mA
Isolated output:	None
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: TRP15130P RoHS Case style: MNd-31.8x20.3-24trp Datasheet

In stock:

2 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,8993	0,5697	0,4497	0,4096	0,3908

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

Manufacturer:: MORNSUN - EOL Manufacturer part number: TRP15130P RoHS Case style: MNd-31.8x20.3-24trp Datasheet

In stock:

3 pcs.

Quantity of pcs.	1+	3+	6+	15+	30+
Net price (EUR)	11,1498	10,5448	10,2976	10,0716	9,9562

Add to comparison tool Add inquiry (RFQ)

Packaging:
3 Quantity (multiple: 1)

- +

• Parameters

Supply voltage:	24V
Input signal:	Pt100
Output signal:	4~20mA
Isolated output:	None
Insulation breakdown voltage:	2000V
Operating temperature (range):	-40°C ~ 85°C
Case:	DIP
