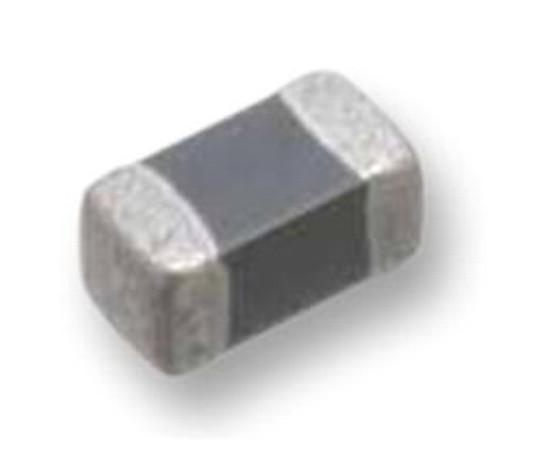

MPZ2012S101A TDK Ferrite bead

Symbol Micros: DK0805S0100.0/4.000A/0.020R

91641

DK0805S0100.0/4.000A/0.020R

Contractor Symbol:

Case : Rys.MPZ2012

Datasheet

Technical drawing Add to favourites

Ferrite bead; impedance: 100R; (100MHz); +-25%; 4A; 0.02R; SMD0805; operating temperature: -55÷125°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0805
Impedance @ 100MHz:	100 Ohm
Current:	4A
Resistance:	0,02 Ohm
Tolerance:	25%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0805
Impedance @ 100MHz:	100 Ohm
Current:	4A
Resistance:	0,02 Ohm
Tolerance:	25%
Operating temperature (range):	-55°C ~ 125°C
Ferrite type:	Bead
