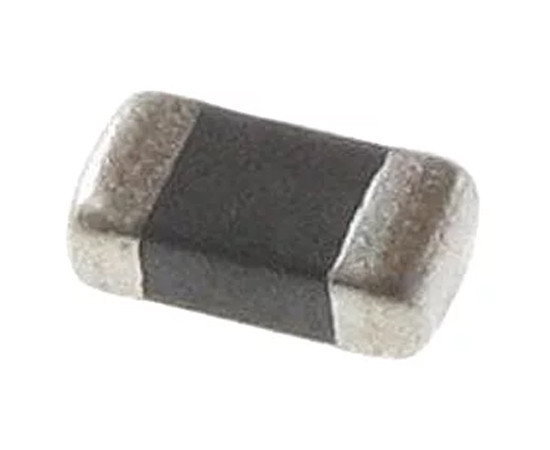

ACMS201209A221 Max Echo Ferrite bead

Symbol Micros: DK0805S0220.0/3.000A/0.050R

527471

DK0805S0220.0/3.000A/0.050R

Contractor Symbol:

Case : Rys. ACMS-201209

Datasheet

Technical drawing Add to favourites

Ferrite bead; impedance: 220R; (100MHz); +-25%; 3A; 0.05R; SMD0805; operating temperature: -55÷125°C; equivalent: CBM05YTAG221

Parameters

Manufacturer:	Max Echo
Mounting:	SMD
Case:	0805
Impedance @ 100MHz:	220 Ohm
Current:	3A
Resistance:	0,05 Ohm
Tolerance:	25%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Max Echo
Mounting:	SMD
Case:	0805
Impedance @ 100MHz:	220 Ohm
Current:	3A
Resistance:	0,05 Ohm
Tolerance:	25%
Operating temperature (range):	-55°C ~ 125°C
Ferrite type:	Bead
