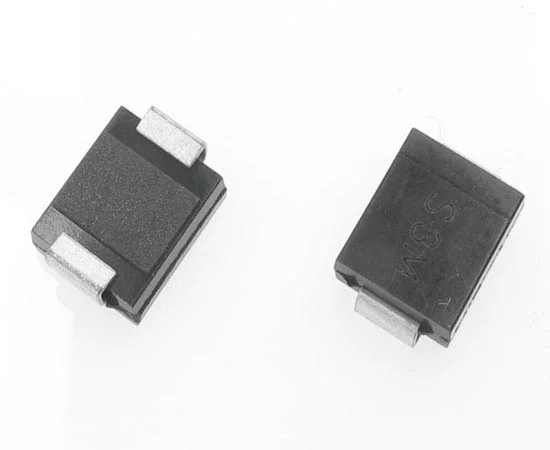

S3M diode rectifying

Symbol Micros: DP S3M

13732

DP S3M

Contractor Symbol:

Case : DO214AB-SMC

Datasheet

Technical drawing Add to favourites

3A; 1000V; packaging: reel; equivalent: CMR3-10; FS3M

Parameters

Case:	DO214AB-SMC
Manufacturer:	MIC
Forward current:	3A
Operating voltage:	1000V
Mounting:	SMD
Type:	Rectifier diode

All parameters

Manufacturer:: MIC Manufacturer part number: S3M SMC RoHS Case style: DO214AB-SMC Datasheet

In stock:

0 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,1621	0,0770	0,0433	0,0327	0,0294

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000/6000/18000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 3000

• Parameters

Case:	DO214AB-SMC
Manufacturer:	MIC
Forward current:	3A
Operating voltage:	1000V
Mounting:	SMD
Type:	Rectifier diode
