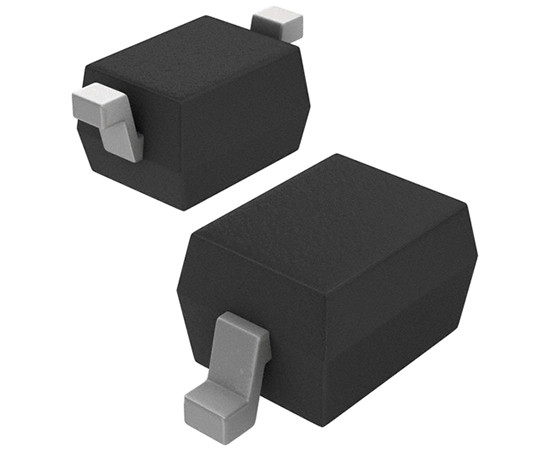

BAT54HT1G ONS

Symbol Micros: DS BAT54HT1G ONS

499055

DS BAT54HT1G ONS

Contractor Symbol:

Case : SOD323t/r

Datasheet

Technical drawing Add to favourites

30V; 200mA; SOD323; SMD; packing: tape/reel

Parameters

Case:	SOD323
Manufacturer:	ON SEMICONDUCTOR
Forward current:	200mA
Max. reverse voltage [Vrrm]:	30V
Mounting:	SMD
Type:	Schottky

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	SOD323
Manufacturer:	ON SEMICONDUCTOR
Forward current:	200mA
Max. reverse voltage [Vrrm]:	30V
Mounting:	SMD
Type:	Schottky
