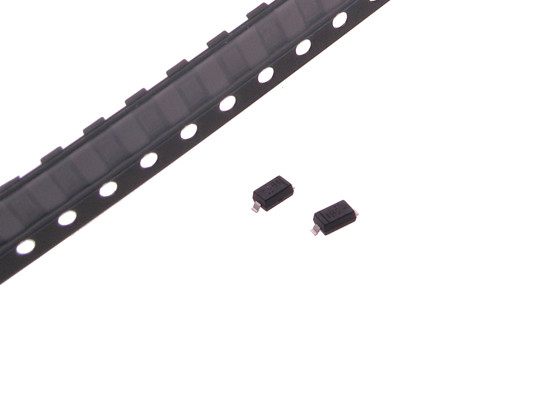

MBR0520 diode Schottky

Symbol Micros: DS MBR0520

15000

DS MBR0520

Contractor Symbol:

Case : SOD123

Datasheet

Technical drawing Add to favourites

0,5A; 20V package: reel; equivalent: B0520LW

Parameters

Case:	SOD123
Manufacturer:	MIC
Forward current:	0,5A
Max. reverse voltage [Vrrm]:	20V
Type of packaging:	Reel
Mounting:	SMD
Type:	Schottky

All parameters

Manufacturer:: MIC Manufacturer part number: MBR0520 RoHS Case style: SOD123 t/r

In stock:

23271 pcs.

Quantity of pcs.	10+	50+	400+	3000+	12000+
Net price (EUR)	0,0808	0,0312	0,0152	0,0121	0,0116

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000/36000 Quantity (multiple: 10)

- +

• Parameters

Case:	SOD123
Manufacturer:	MIC
Forward current:	0,5A
Max. reverse voltage [Vrrm]:	20V
Type of packaging:	Reel
Mounting:	SMD
Type:	Schottky
