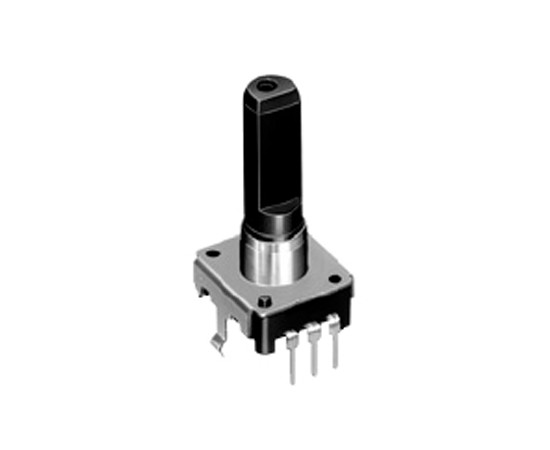

EC12E1220405 Alps Incremental encoder

Symbol Micros: EC 12E1220405

114181

EC 12E1220405

Contractor Symbol:

Case : rys.EC12E1220405

Datasheet

Technical drawing Add to favourites

Incremental encoder; THT; 5mA; 12imp/revol; 30000 cycles; shaft length: 25mm; shaft diameter: 6mm

Parameters

Shaft length:	25mm
Resolution:	12
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	No

All parameters

Manufacturer:: ALPS Manufacturer part number: EC12E1220405 RoHS Case style: rys.EC12E1220405 Datasheet

In stock:

36 pcs.

Quantity of pcs.	2+	10+	40+	120+	240+
Net price (EUR)	0,8217	0,5115	0,4073	0,3718	0,3576

Add to comparison tool Add inquiry (RFQ)

Packaging:
120/240 Quantity (multiple: 1)

- +

• Parameters

Shaft length:	25mm
Resolution:	12
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	No
Operating current:	5mA
Orientation:	Horizontal
