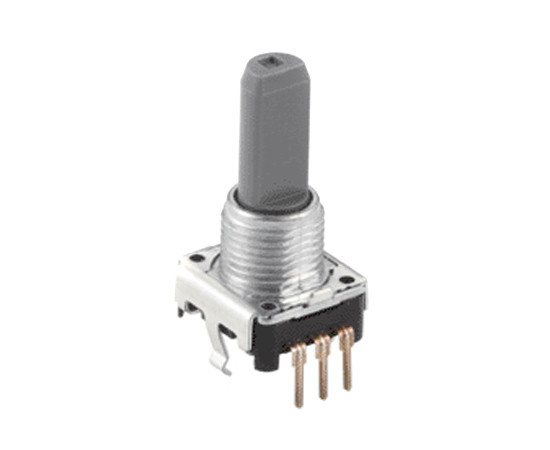

EC12E2420801 Alps Incremental encoder

Symbol Micros: EC 12E2420801

115439

EC 12E2420801

Contractor Symbol:

Case : rys.EC12E2420801

Datasheet

Technical drawing Add to favourites

Incremental encoder; THT; 5mA; 24imp/revol; 30000 cycles; shaft length: 25mm; shaft diameter: 6mm

Parameters

Shaft length:	25mm
Resolution:	24
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes

All parameters

Manufacturer:: ALPS Manufacturer part number: EC12E2420801 Case style: rys.EC12E2420801

External warehouse:

245 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7363

Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Shaft length:	25mm
Resolution:	24
Manufacturer:	ALPS
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes
Operating current:	5mA
Orientation:	Horizontal
