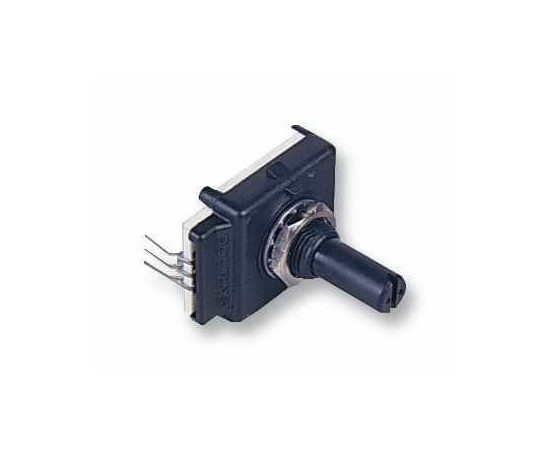

ECW1J-B24-AC0024L Bourns Incremental encoder

Symbol Micros: EC ECW1J-B24-AC0024L

126166

EC ECW1J-B24-AC0024L

Contractor Symbol:

Case : Rys.ECW1J-B24-AC0024L

Datasheet

Add to favourites

Incremental encoder; THT; 10mA; 24PPR; dimensions: 28.5x22mm; thread: M9 x 0.75; shaft length: 19mm; shaft diam.: 6,35mm

Parameters

Shaft length:	19mm
Resolution:	24
Manufacturer:	Bourns
Shaft diameter:	6,35mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes

All parameters

Manufacturer:: Bourns Manufacturer part number: ECW1J-B24-AC0024L RoHS Case style: Rys.ECW1J-B24-AC0024L Datasheet

In stock:

18 pcs.

Quantity of pcs.	1+	3+	10+	45+	135+
Net price (EUR)	4,4125	3,7261	3,3123	3,0561	2,9621

Add to comparison tool Add inquiry (RFQ)

Packaging:
45 Quantity (multiple: 1)

- +

Manufacturer:: Bourns Manufacturer part number: ECW1J-B24-AC0024L Case style: Rys.ECW1J-B24-AC0024L

External warehouse:

1125 pcs.

Quantity of pcs.	45+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,0630

Add to comparison tool Add inquiry (RFQ)

Packaging:
45

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Shaft length:	19mm
Resolution:	24
Manufacturer:	Bourns
Shaft diameter:	6,35mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes
Operating current:	10mA
Orientation:	Horizontal
