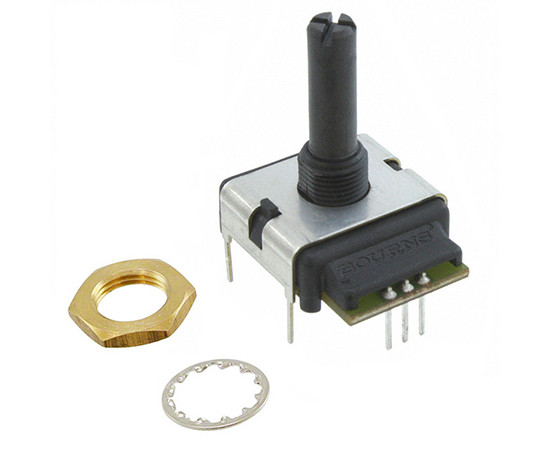

ECW1J-R24-BC0024L Bourns Incremental encoder

Symbol Micros: EC ECW1J-R24-BC0024L

126163

EC ECW1J-R24-BC0024L

Contractor Symbol:

Case : Rys.ECW1J-R24-BC0024L

Datasheet

Add to favourites

Incremental encoder; THT; 10mA; 24PPR; dimensions: 9x6.35mm; thread: M9 x 0.75; shaft length: 24mm; shaft diameter: 6mm

Parameters

Shaft length:	24mm
Resolution:	24
Manufacturer:	Bourns
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes

All parameters

Manufacturer:: Bourns Manufacturer part number: ECW1J-R24-BC0024L RoHS Case style: Rys.ECW1J-R24-BC0024L Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	45+	135+
Net price (EUR)	4,4656	3,7709	3,3522	3,0929	2,9977

Add to comparison tool Add inquiry (RFQ)

Packaging:
45 Quantity (multiple: 1)

- +

Manufacturer:: Bourns Manufacturer part number: ECW1J-R24-BC0024L Case style: Rys.ECW1J-R24-BC0024L

External warehouse:

405 pcs.

Quantity of pcs.	45+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,2986

Add to comparison tool Add inquiry (RFQ)

Packaging:
45

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Shaft length:	24mm
Resolution:	24
Manufacturer:	Bourns
Shaft diameter:	6mm
Built-in button:	No
Mounting:	THT
Mounting thread:	Yes
Operating current:	10mA
Orientation:	Horizontal
