Knob; dimensions: 12,1x22,5mm

Symbol Micros: G 505B/Sl

128191

G 505B/Sl

Contractor Symbol:

Case : Rys.505B/Sl

Datasheet

Technical drawing Add to favourites

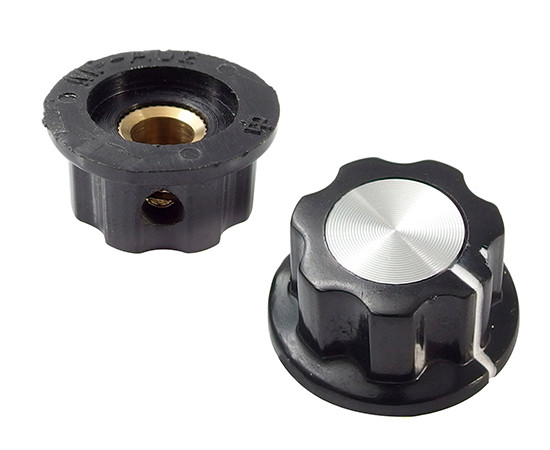

Knob for potentiometers; dimensions: 12,1x22,5mm; shaft diameter: 6mm; black; colour pointer: silver; cap colour: silver; with flange; material: copper + bakelite

Parameters

Dimensions:	12,1x22,5mm
Caseback color:	Silver
Indicator colour:	Silver
Colour:	Black
Material:	Copper/Bakelite
Shaft diameter:	6mm
Knob type:	With pointer

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	12,1x22,5mm
Caseback color:	Silver
Indicator colour:	Silver
Colour:	Black
Material:	Copper/Bakelite
Shaft diameter:	6mm
Knob type:	With pointer
Manufacturer:	N/A
