3801/14 (100FT) 3M Ribbon cable AWG

Symbol Micros: K AWG26/14gr

26416

K AWG26/14gr

Contractor Symbol:

Case : Rys.AWG26/14gr

Datasheet

Technical drawing Add to favourites

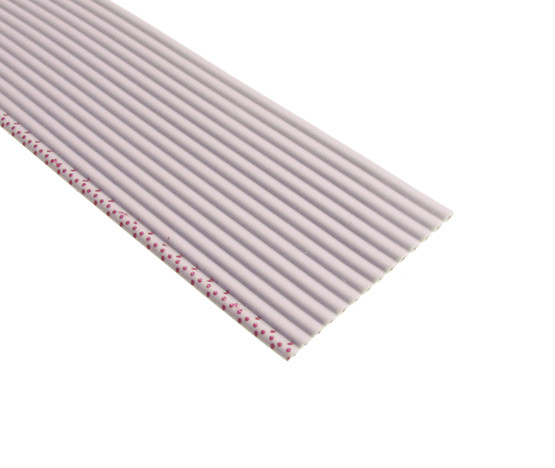

gray flat cable AWG26, 14 cores, gray colour with red 1st core (7x0.16mm) pitch: 1,27mm, oper. tempitch: 105°C, mates with IDC type connectors - 2.54mm

Parameters

Number of cores:	14
Packaging:	Reel 30,5m
Insulation colour:	Grey
Vein diameter:	AWG26
Manufacturer:	3M
Terminal pitch:	1,27mm
Tape type:	Without connectors

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of cores:	14
Packaging:	Reel 30,5m
Insulation colour:	Grey
Vein diameter:	AWG26
Manufacturer:	3M
Terminal pitch:	1,27mm
Tape type:	Without connectors
