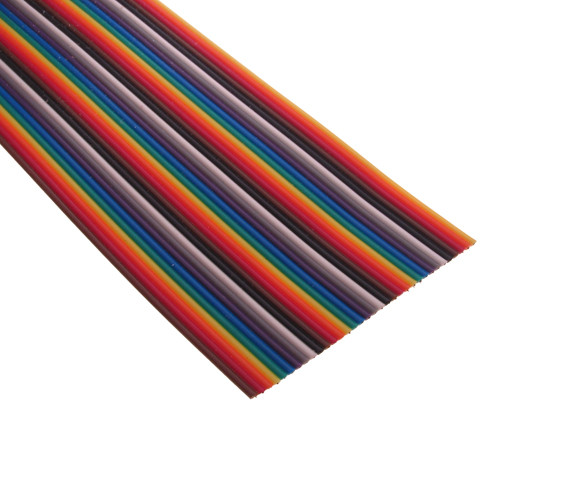

DS1058-20M28 CONNFLY Ribbon cable AWG

Symbol Micros: K AWG28/20cr

21302

K AWG28/20cr

Contractor Symbol:

Case : Rys.AWG28/20cr

Datasheet

Technical drawing Add to favourites

multicoloured flat cable AWG28, 20 cores,different types of core colours pitch: 1,27mm, oper. tempitch: -20°C ~+70°C, mates with IDC type connectors - 2.54mm; cable length: 30,5m

Product description

Parameters

Number of cores:	20
Packaging:	Reel 30,5m
Insulation colour:	Colourful
Vein diameter:	AWG28
Manufacturer:	CONNFLY
Terminal pitch:	1,27mm
Tape type:	Without connectors

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1058-20M28-30.5 Case style: Rys.AWG28/20cr

External warehouse:

40 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	18,1765

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters
• Description

Number of cores:	20
Packaging:	Reel 30,5m
Insulation colour:	Colourful
Vein diameter:	AWG28
Manufacturer:	CONNFLY
Terminal pitch:	1,27mm
Tape type:	Without connectors

Detailed description

AWG28 Color Ribbon Cable

20 wires
Various wire colors, p. 1.27mm
Operating temperature up to 105°C
Designed for IDC connectors - 2.54mm
