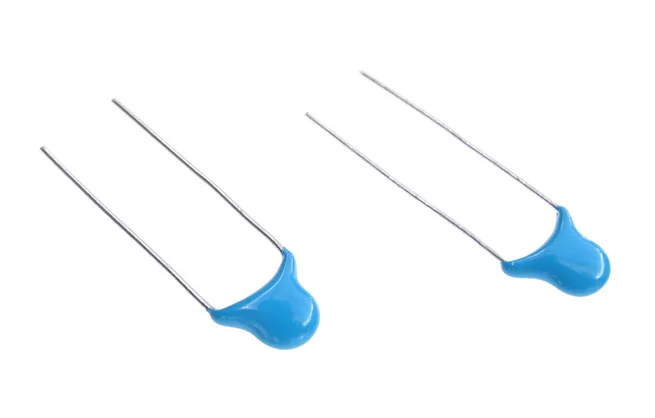

Disc ceramic capacitor; 470pF

Symbol Micros: KC470k3.0/7.5

16872

KC470k3.0/7.5

Contractor Symbol:

Case : Rys.KC3kV/07.5 D7

Datasheet

Technical drawing Add to favourites

Disc ceramic capacitor; 470pF; 3kV; r=7.5mm; D=7mm; mounting: THT; operating temperature: -25°C ~85°C

Parameters

Capacitance:	470pF
Body dimensions:	7x4mm
Operating voltage:	3000V
Terminal pitch [m]:	7,5mm
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Capacitor type:	Ceramic

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Capacitance:	470pF
Body dimensions:	7x4mm
Operating voltage:	3000V
Terminal pitch [m]:	7,5mm
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Capacitor type:	Ceramic
Mounting:	THT
