Disc ceramic capacitor; 10nF

Symbol Micros: KCN 10/50/5

3911

KCN 10/50/5

Contractor Symbol:

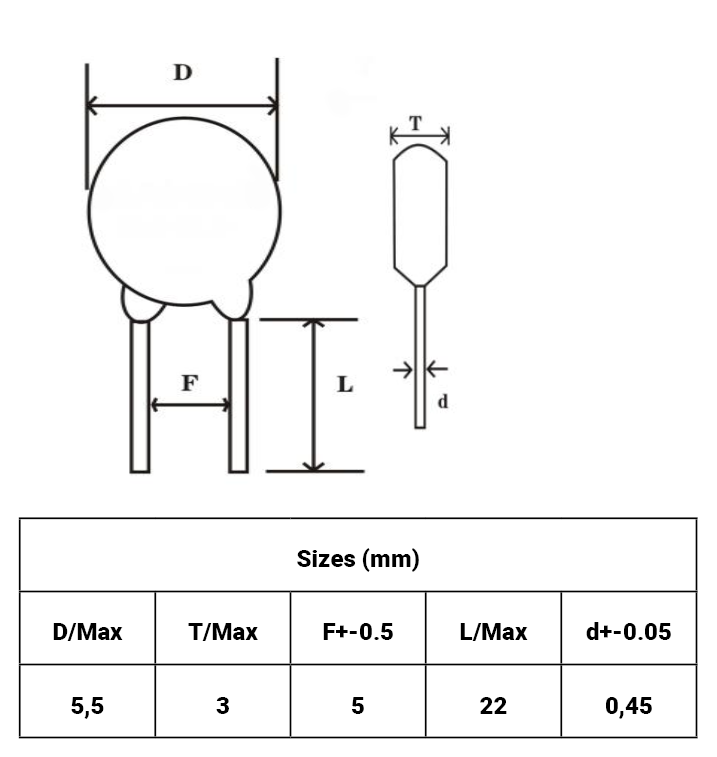

Case : Rys.CER.05.0 D5,5

Datasheet

Technical drawing Add to favourites

Disc ceramic capacitor; 10nF; 50V; r=5.08mm; D=5,5mm; mounting: THT; operating temperature: -25°C ~85°C

Parameters

Capacitance:	10nF
Body dimensions:	5,5x3mm
Operating voltage:	50V
Terminal pitch [m]:	5,08mm
Capacitor type:	Ceramic
Manufacturer:	N/A
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Capacitance:	10nF
Body dimensions:	5,5x3mm
Operating voltage:	50V
Terminal pitch [m]:	5,08mm
Capacitor type:	Ceramic
Manufacturer:	N/A
Mounting:	THT
Operating temperature (range):	-25°C ~ 85°C
