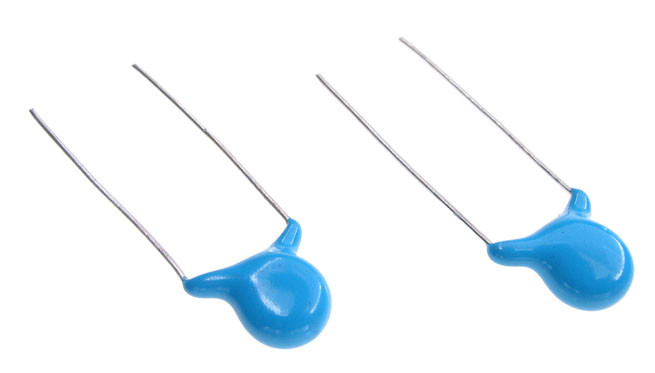

Disc ceramic capacitor; 10nF

Symbol Micros: KCN 10k3.0/10

15223

KCN 10k3.0/10

Contractor Symbol:

Case : Rys.KC3kV/10.0 D13

Datasheet

Technical drawing Add to favourites

Disc ceramic capacitor; 10nF; 3kV; r=10mm; D=13mm; mounting: THT; operating temperature: -25°C ~85°C

Parameters

Capacitance:	10nF
Body dimensions:	13x4mm
Operating voltage:	3000V
Terminal pitch [m]:	10,0mm
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Capacitor type:	Ceramic

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Capacitance:	10nF
Body dimensions:	13x4mm
Operating voltage:	3000V
Terminal pitch [m]:	10,0mm
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Capacitor type:	Ceramic
Mounting:	THT
