HC-SR501

Symbol Micros: M HC-SR501

317762

M HC-SR501

Contractor Symbol:

Case : Rys.HC-SR501

Datasheet

Add to favourites

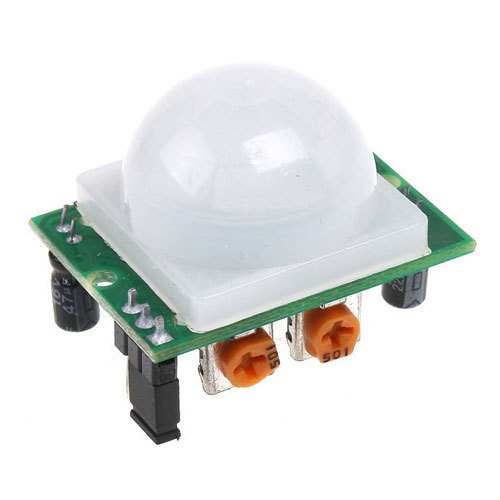

Arduino compatible PIR motion detector module; Sensing distance: 7m; Angle sensor: <110°; Lens diameter: 23mm; 5V~20V; 65mA; -15°C ~ 70°C; PCB size: 32x24mm;

Parameters

Dimensions:	32x24mm
Microcontroller:	N/A
Supply voltage:	5V~20V
Interface:	N/A
Operating temperature:	-15°C ~ 70°C

All parameters

Manufacturer:: CHINA Manufacturer part number: HC-SR501 RoHS Case style: Rys.HC-SR501

In stock:

14 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,8266	1,4490	1,3098	1,2390	1,2177

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	32x24mm
Microcontroller:	N/A
Supply voltage:	5V~20V
Interface:	N/A
Operating temperature:	-15°C ~ 70°C
