MAS830L
Symbol Micros:
M MAS830L
Case : Rys.MAS830L
Digital multimeter; Manual; 1999 counts; 200V~600V; 200mV~600V; 200Ohm~2MOhm;
Parameters
| AC voltage measurment range: | 200V~600V |
| DC voltage measurment range: | 200mV~600V |
| Resistance measurment range: | 200Ohm~2MOhm |
| Maximum counts: | 1999 |
| Range: | Manual |
| Manufacturer: | V&A Instrument |
| Type of meter: | Digital multimeter |
| AC voltage measurment range: | 200V~600V |
| DC voltage measurment range: | 200mV~600V |
| Resistance measurment range: | 200Ohm~2MOhm |
| Maximum counts: | 1999 |
| Range: | Manual |
| Manufacturer: | V&A Instrument |
| Type of meter: | Digital multimeter |
Detailed description

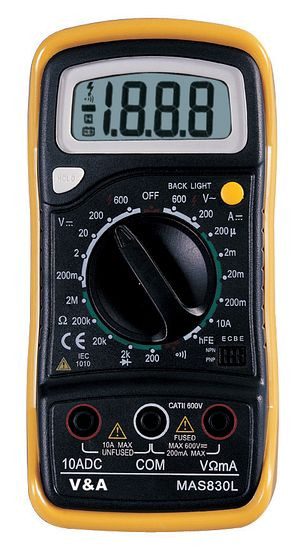

Digital multimeter MAS830L
- Max. display: 1999
- Data hold
- Back light
- DCV: 200mV/2V/20V/200V±(0.5%+2C), 600V±(0.8%+2C)
- ACV: 200V/600V ±(1.2%+10C)
- DCA: 0.2mA/2mA/20mA ±(1.0%+2C),200mA±(1.5%+2C),10A(±3.0%+2C)
- Resistance: 200Ω±(0.8%+3C), 2kΩ/20kΩ/200kΩ±(0.8%+2C), 2MΩ±(1.0%+2C)
- Continuity test with buzzer
- hFE test
- Diode test
- Power: 6F22 (9V)
- Dimensions: 138 x 69 x 31mm
- Weight: 170g
