Digital multimeter MS8360E MAS, 1999 counts
Symbol Micros:
M MS8360E MAS
Case : Rys.MS8360E MAS
Voltage DC:600V,AC:600V, current DC:10A,AC:200mA, res.:200MR,cap.:200uF,ind.:20H Power supply: battery 1x9V (6F22), dimensions: 188x92x50mm, weight: 592g
Detailed description

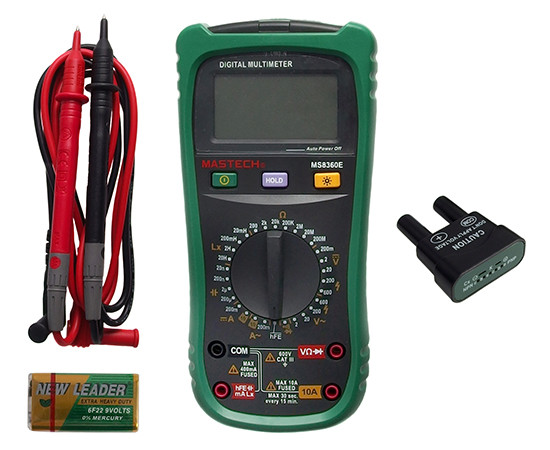

Digital multimeter MS8360E
- Max. Display: 1999 counts,
- Range selection: manual range,
- DCV: 200m/2/20/200 V ± 0.5%, 600 V ± 0.8%,
- ACV: 2/20/200 V ± 0.8%, 600 V ± 1.2%,
- DCA: 20 mA ± 0.8%, 200 mA ± 1.5%, 10 A ± 2.0%,
- ACA: 20 mA ± 1.0%, 200 mA ± 1.8% 10 A ± 3.0%,
- Resistance: 200/2k/20k/200k/2M Ω ± 0.8%, 20MΩ ±4.0, 200MΩ ±5.0,
- Capacitance: 20n/200n/2µ/20 µF ± 4.0%, 200µF ± 5.0%,
- Inductance: 20m/200m/2/20 H ± 3.0%,
- Measurement frequency: 20 kHz ± 1.5%,
- Diode test,
- Continuity buzzer,
- Auro power off,
- Data hold,
- Display backlight,
- hFE test,
- Power: 1xV (6F22),
- Dimensions: 188 x 92 x 50mm,
- Weight: 592g.
