Bench meter VA802 True RMS max.display 50000

Micros part number: M VA802
Package: Rys.VA802
Voltage AC/DC, current AC/DC, resistance, capacitance, True RMS
Manufacturer::   Manufacturer part number:   Package: Rys.VA802

Pozycja dostępna na zamówienie
Detailed description

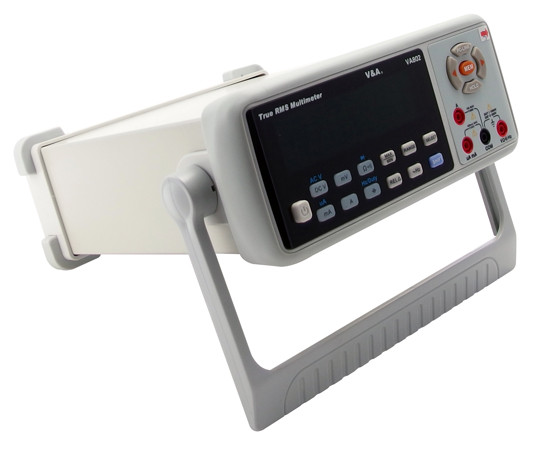

Bench meter True RMS​ VA802

  • Max display: 50000
  • AC Voltage measurement range: 0,5 V ~ 1000 V
  • DC Voltage measurement range: 0,001 V ~ 1000 V
  • AC current measurement range: 5μA ~ 10A
  • DC current measurement range: 0.01μA ~ 10A
  • AC/DC True RMS measurement
  • DC measurement accuracy reaches up to: 0,03%
  • Resistance measurement range
  • Capacitance measurement range: 0,01 nF ~ 5 mF
  • Resistance resolution: 0,01 Ω
  • Voltage resolution: 1 μV
  • Linear frequency measurement, logic frequency / duty ratio measurement
  • dBm measurement
  • Maximum value / minimum value measurement, relative value measurement
  • Automatic / manual range
  • Basic sampling rate: 2.5 t/s
  • VFD double display function
  • All operations by buttons
  • Up to 30 full screen data memory
  • RS-232C, USB, Bluetooth communication interface can be chosen
  • Display, record and graphics computer software
  • Overload protection
  • Operating temperature: 5℃ ~ 41℃
  • Dimensions: 350 x 240 x 100 mm
  • Weight: 2500g



V&A
