DEM 128160A1 TMH-PW-N Display Elektronik

Symbol Micros: O TFT DEM 128160A1 TMH-PW-N

528339

O TFT DEM 128160A1 TMH-PW-N

Contractor Symbol:

Case : Rys.O TFT DEM 128160A1 TMH-PW-N

Datasheet

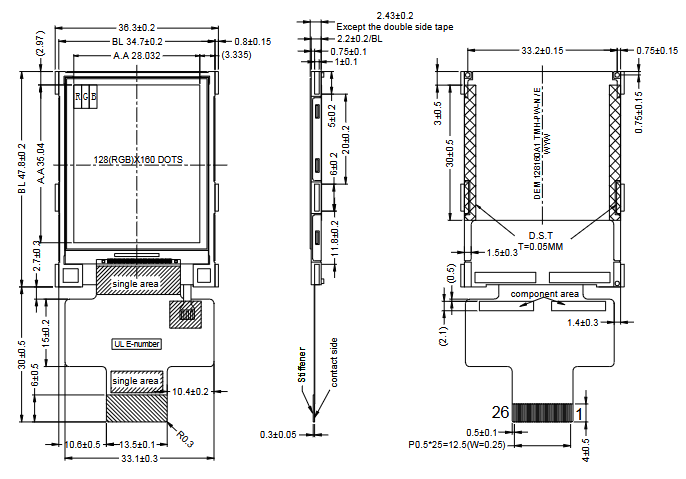

Technical drawing Add to favourites

TFT LCD graphic display, resolution: 128x160dots, size 1,8" Window: 28,032x35,04mm, size: 36,3x47,8x2,43mm, luminance 350cd/m^2; contrast 500:1

Parameters

Size:	28,032x35,04mm
Window size:	36,3x47,8x2,43mm
Interface:	16bit SPI, 8080
Kind of controller:	ST7735S
Number of pins:	26
Resolution:	128x160
Supply voltage:	2,5V ~ 3,7V

All parameters

Manufacturer:: Displaytech Ltd Manufacturer part number: DEM 128160A1 TMH-PW-N RoHS Case style: Rys.O TFT DEM 128160A1 TMH-PW-N

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	12,5432	11,8968	11,4854	11,3349	11,1986

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Size:	28,032x35,04mm
Window size:	36,3x47,8x2,43mm
Interface:	16bit SPI, 8080
Kind of controller:	ST7735S
Number of pins:	26
Resolution:	128x160
Supply voltage:	2,5V ~ 3,7V
Parameters:	brak
Diagonal screen size:	1,8inch
Number of colours:	65000
Brightness:	350cd/m^2
Connector implementation configuration:	1x26
Operating temperature (range):	-20°C ~ 70°C
Contrast:	500:1
Backlight colour:	White
