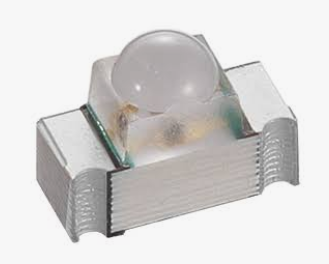

IR26-61C/L302/TR8 Everlight

Symbol Micros: OIN IR26-61C/L302/TR8

539883

OIN IR26-61C/L302/TR8

Contractor Symbol:

Case : Rys.OIN IR26-61C/L302/TR8

Datasheet

Technical drawing Add to favourites

IR emiting diode SMD 1206; wymiary: 3x1,2x2,65mm; wavelenght: 920-960nm; kąt świecenia: 20° Power: 100mW; IF=65mA; VF= 1,15-1,5V; working temperature: -40°C - 85°C

Parameters

Forward current:	65mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Optical power:	100mW
Viewing Angle:	20°
Wavelength range:	920nm ~ 960nm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 100

• Parameters

Forward current:	65mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Optical power:	100mW
Viewing Angle:	20°
Wavelength range:	920nm ~ 960nm
