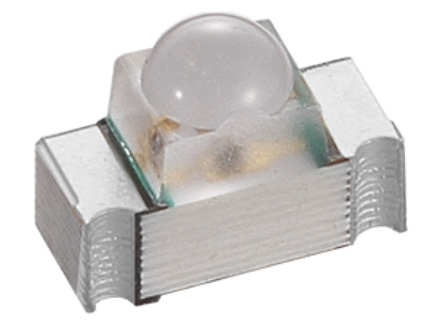

IR29-01C/L510/R/TR8 Everlight

Symbol Micros: OIN IR29-01C/L510/R/TR8

539923

OIN IR29-01C/L510/R/TR8

Contractor Symbol:

Case : Rys.OIN IR29-01C/L510/R/TR8

Datasheet

Technical drawing Add to favourites

IR emiting diode SMD 3012; wymiary: 3x1,2x2,76mm; wavelenght: 940nm; kąt świecenia: 15° Power: 100mW; IF=50mA; VF= 1,3-1,6V; working temperature: -40°C - 100°C

Parameters

Forward current:	50mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Operating temperature (range):	-40°C ~ 100°C
Optical power:	100mW
Viewing Angle:	15°
Wavelength (nm):	940nm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Forward current:	50mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Operating temperature (range):	-40°C ~ 100°C
Optical power:	100mW
Viewing Angle:	15°
Wavelength (nm):	940nm
