TEMD1000

Symbol Micros: OIO TEMD1000

302027

OIO TEMD1000

Contractor Symbol:

Case : Rys.TEMD1000

Datasheet

Technical drawing Add to favourites

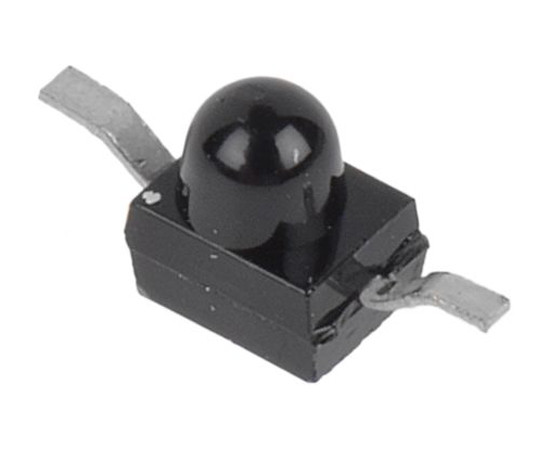

Photodiode TEMD1000; 2.5×2×2.7mm; Vr=60V; Id=1nA, IL=10uA; 75mW; working temperature -40÷85°C; wavelength 940nm; viewing angle 30°

Parameters

Mounting:	SMD
Diameter:	1,9mm
Colour:	Black
Wavelength (nm):	950nm
Wavelength range:	790nm ~ 1050nm
Forward current:	50mA
Viewing angle:	30°

All parameters

Manufacturer:: Vishay Manufacturer part number: TEMD1000 RoHS Case style: Rys.TEMD1000 Datasheet

In stock:

50 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7816	0,4959	0,3920	0,3565	0,3400

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: Vishay Manufacturer part number: TEMD1000 Case style: Rys.TEMD1000

External warehouse:

3000 pcs.

Quantity of pcs.	1000+ (Please wait for the order confirmation)
Net price (EUR)	0,3400

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Mounting:	SMD
Diameter:	1,9mm
Colour:	Black
Wavelength (nm):	950nm
Wavelength range:	790nm ~ 1050nm
Forward current:	50mA
Viewing angle:	30°
Forvard volatge [UF]:	1V
Forvard volatge range:	1V ~ 1,3V
Operating temperature (range):	-40°C ~ 85°C
