TEMD5080X01

Symbol Micros: OIO TEMD5080x01

302030

OIO TEMD5080x01

Contractor Symbol:

Case : Rys.TEMD5xx0X01

Datasheet

Technical drawing Add to favourites

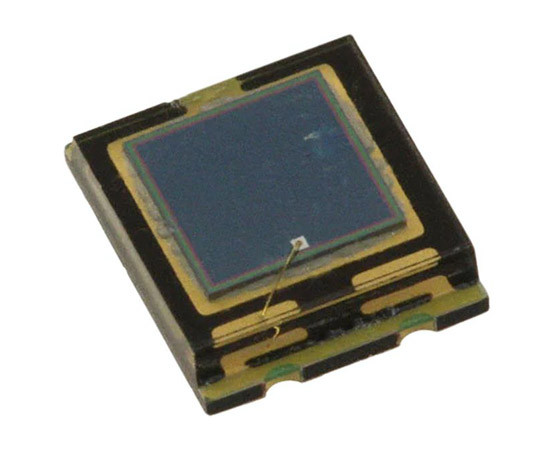

Photodiode TEMD5080X01; 5×4.24×1.12mm; Vr=25V; Id=2nA, IL=60uA; 215mW; working temperature -40÷100°C; wavelength 940nm; viewing angle 130°

Parameters

Forvard volatge range:	1V ~ 1,3V
Forvard volatge [UF]:	1V
Viewing angle:	130°
Mounting:	SMD
Forward current:	50mA
Operating temperature (range):	-40°C ~ 100°C
Wavelength (nm):	940nm

All parameters

Manufacturer:: Vishay Manufacturer part number: TEMD5080X01 RoHS Case style: Rys.TEMD5xx0X01 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	1,9908	1,4578	1,3428	1,2348	1,1714

Add to comparison tool Add inquiry (RFQ)

Packaging:
5/10 Quantity (multiple: 1)

- +

• Parameters

Forvard volatge range:	1V ~ 1,3V
Forvard volatge [UF]:	1V
Viewing angle:	130°
Mounting:	SMD
Forward current:	50mA
Operating temperature (range):	-40°C ~ 100°C
Wavelength (nm):	940nm
Wavelength range:	350nm ~ 1100nm
