1003SURD/S530-A3 Everlight

Symbol Micros: OL.1003SURD/S530-A3

487912

OL.1003SURD/S530-A3

Contractor Symbol:

Case : Rys.OL.1003SURD/S530-A3

Datasheet

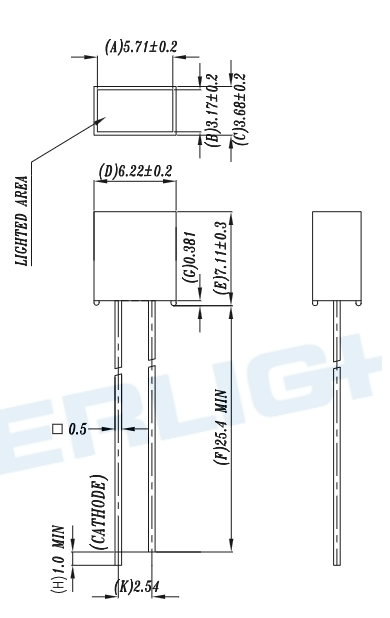

Technical drawing Add to favourites

Case: THT; Colour: red; Brightness: 50mcd; Viewing angle: 110°; LED current: 25mA

Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Red
Brightness:	50mcd
Viewing angle:	110°

All parameters

Manufacturer:: EVERSPIN Manufacturer part number: 1003SURD/S530-A3 Case style: Rys.OL.1003SURD/S530-A3

External warehouse:

1900 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,0714

Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: EVERLIGHT Manufacturer part number: 1003SURD/S530-A3 Case style: Rys.OL.1003SURD/S530-A3

External warehouse:

8470 pcs.

Quantity of pcs.	7000+ (Please wait for the order confirmation)
Net price (EUR)	0,0513

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Red
Brightness:	50mcd
Viewing angle:	110°
LED diode current:	25mA
Wavelength (nm):	624nm
Diode lens:	Diffusive
Pole pitch:	2,54mm
