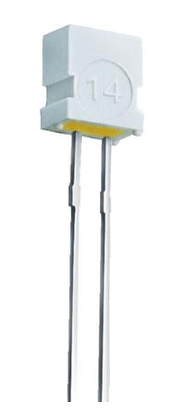

1003SURD/S530-A3/TR1-2 Everlight

Symbol Micros: OL.1003SURD/S530-A3/TR1-2

487913

OL.1003SURD/S530-A3/TR1-2

Contractor Symbol:

Case : Rys.OL.1003SURD/S530-A3/TR1-2

Datasheet

Technical drawing Add to favourites

Case: THT; Colour: red; Brightness: 50mcd; Viewing angle: 110°; LED current: 25mA

Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Red
Brightness:	50mcd
Viewing angle:	110°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Red
Brightness:	50mcd
Viewing angle:	110°
LED diode current:	25mA
Wavelength (nm):	624nm
Diode lens:	Diffusive
Pole pitch:	2,54mm
