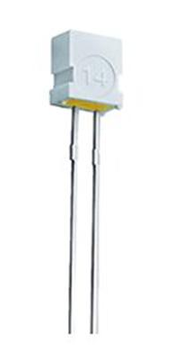

1003UYD/S530-A3 Everlight

Symbol Micros: OL.1003UYD/S530-A3

487915

OL.1003UYD/S530-A3

Contractor Symbol:

Case : Rys.OL.1003UYD/S530-A3

Datasheet

Technical drawing Add to favourites

Case: THT; Colour: yellow; Brightness: 50mcd; Viewing angle: 110°; LED current: 20mA

Parameters

Brightness:	50mcd
Diode lens:	Diffusive
Diode type:	LED
Forvard volatge [UF]:	2,0V
LED colours:	Yellow
LED diode current:	20mA
Manufacturer:	EVERLIGHT

All parameters

Manufacturer:: EVERSPIN Manufacturer part number: 1003UYD/S530-A3 Case style: Rys.OL.1003UYD/S530-A3

External warehouse:

1000 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,0712

Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Brightness:	50mcd
Diode lens:	Diffusive
Diode type:	LED
Forvard volatge [UF]:	2,0V
LED colours:	Yellow
LED diode current:	20mA
Manufacturer:	EVERLIGHT
Mounting:	THT
Nominal voltage:	1,7V ~ 2,4V
Operating temperature (range):	-40°C ~ 85°C
Pole pitch:	2,54mm
Shape:	Rectangular
Viewing angle:	110°
Wavelength (nm):	589nm
