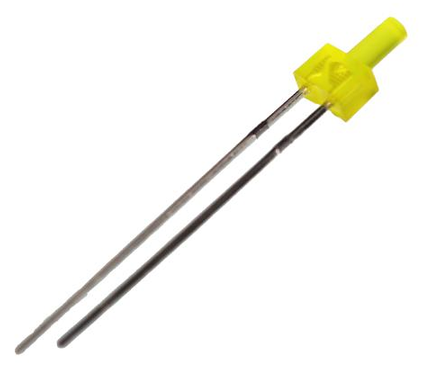

103UYD/S530-A3 Everlight

Symbol Micros: OL.103UYD/S530-A3

487919

OL.103UYD/S530-A3

Contractor Symbol:

Case : Rys.OL.103UYD/S530-A3

Datasheet

Technical drawing Add to favourites

Case: THT; Colour: yellow; Brightness: 50mcd; Viewing angle: 130°; LED current: 20mA

Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Yellow
Brightness:	50mcd
Viewing angle:	130°

All parameters

Manufacturer:: EVERSPIN Manufacturer part number: 103UYD/S530-A3 Case style: Rys.OL.103UYD/S530-A3

External warehouse:

6700 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0493

Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	EVERLIGHT
Diode type:	LED
Mounting:	THT
Shape:	Rectangular
LED colours:	Yellow
Brightness:	50mcd
Viewing angle:	130°
LED diode current:	20mA
Wavelength (nm):	589nm
Diode lens:	Diffusive
Pole pitch:	2,54mm
Nominal voltage:	1,7V ~ 2,4V
Forvard volatge [UF]:	2,0V
Operating temperature (range):	-40°C ~ 85°C
