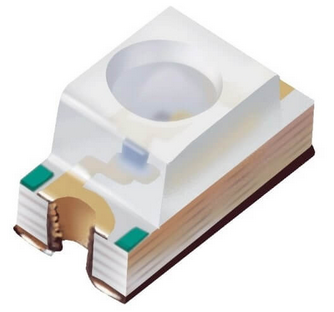

11-21UYC/S530-A3/3T Everlight

Symbol Micros: OL.11-21UYC/S530-A3/3T

487950

OL.11-21UYC/S530-A3/3T

Contractor Symbol:

Case : Rys.OL.11-21UYC/S530-A3/3T

Datasheet

Technical drawing Add to favourites

Type: SMD; Colour: yellow; Housing: 1206; Brightness: 106mcd; Viewing angle: 60°; LED current: 25mA

Parameters

Brightness:	106mcd
Case:	1206
Diode lens:	Wodnoprzeźroczysta
Diode type:	LED
Forvard volatge [UF]:	2,0V
LED colours:	Yellow
LED diode current:	25mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	106mcd
Case:	1206
Diode lens:	Wodnoprzeźroczysta
Diode type:	LED
Forvard volatge [UF]:	2,0V
LED colours:	Yellow
LED diode current:	25mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Nominal voltage:	2V ~ 2,4V
Operating temperature (range):	-40°C ~ 85°C
Power:	60mW
Viewing angle:	60°
Wavelength (nm):	589nm
