15-21SURC/S530-A2/TR8 EVERLIGHT

Symbol Micros: OL.15-21SURC/S530-A2/TR8

488208

OL.15-21SURC/S530-A2/TR8

Contractor Symbol:

Case : Rys.OL.15-21SURC/S530-A2/TR8

Datasheet

Technical drawing Add to favourites

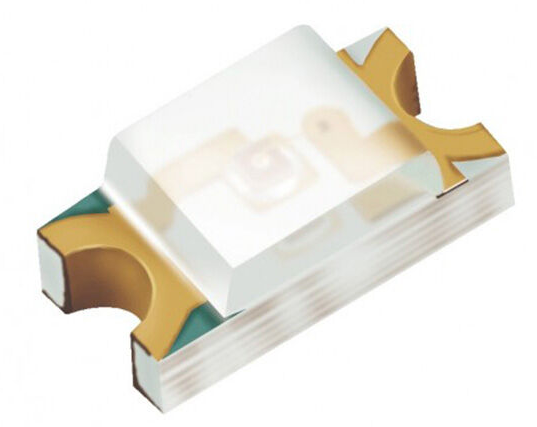

LED SMD 1206 red; dimensions: 2x1,5x1,1mm; luminosity: 15-38mcd; diode current: 25mA Wavelenght: 624-632nm; viewing angle: 130°; operating voltage: 2-2,4V

Parameters

Brightness:	15mcd ~ 38mcd
Case:	1206
Diode type:	LED
LED colours:	Red
LED diode current:	25mA
Manufacturer:	EVERLIGHT
Mounting:	SMD

All parameters

Manufacturer:: EVERLIGHT Manufacturer part number: 15-21SURC/S530-A2/TR8 RoHS Case style: Rys.OL.15-21SURC/S530-A2/TR8

In stock:

2000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1530	0,0723	0,0406	0,0306	0,0278

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	15mcd ~ 38mcd
Case:	1206
Diode type:	LED
LED colours:	Red
LED diode current:	25mA
Manufacturer:	EVERLIGHT
Mounting:	SMD
Nominal voltage:	2V ~ 2,4V
Operating temperature (range):	-40°C ~ 85°C
Power:	60mW
Viewing angle:	140°
Wavelength range:	624nm ~ 632nm
