C503B-RAN-CZ0C0AA1 CREE

Symbol Micros: OL.C503B-RAN-CZ0C0AA1

482798

OL.C503B-RAN-CZ0C0AA1

Contractor Symbol:

Case : Rys.OL.C503B-RAN-CZ0C0AA1

Datasheet

Technical drawing Add to favourites

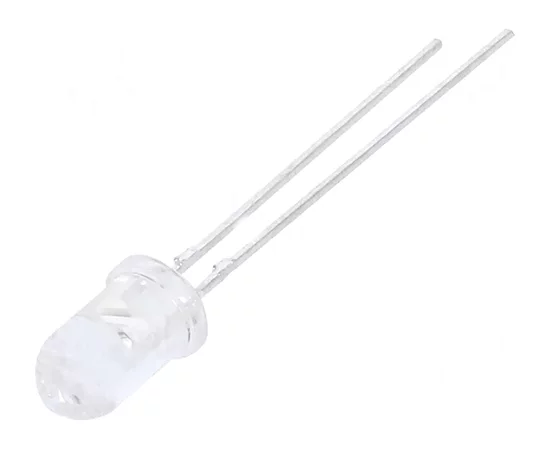

LED 5mm waterclear round red, 15000mcd Wavelength: 618nm - 630nm; Diode current: 20mA

Parameters

Manufacturer:	Cree
Colour:	Red
Wavelength range:	618nm ~ 630nm
Brightness:	15000mcd
Forward current:	20mA
Viewing angle:	15°
Forvard volatge [UF]:	2,1V

All parameters

Manufacturer:: Cree Led Manufacturer part number: C503B-RAN-CZ0C0AA1 Case style: Rys.OL.C503B-RAN-CZ0C0AA1

External warehouse:

3000 pcs.

Quantity of pcs.	1500+ (Please wait for the order confirmation)
Net price (EUR)	0,0952

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	Cree
Colour:	Red
Wavelength range:	618nm ~ 630nm
Brightness:	15000mcd
Forward current:	20mA
Viewing angle:	15°
Forvard volatge [UF]:	2,1V
Wavelength (nm):	624nm
Operating temperature (range):	-40°C ~ 100°C
Mounting:	THT
Diameter:	5mm
Optical power:	130mW
