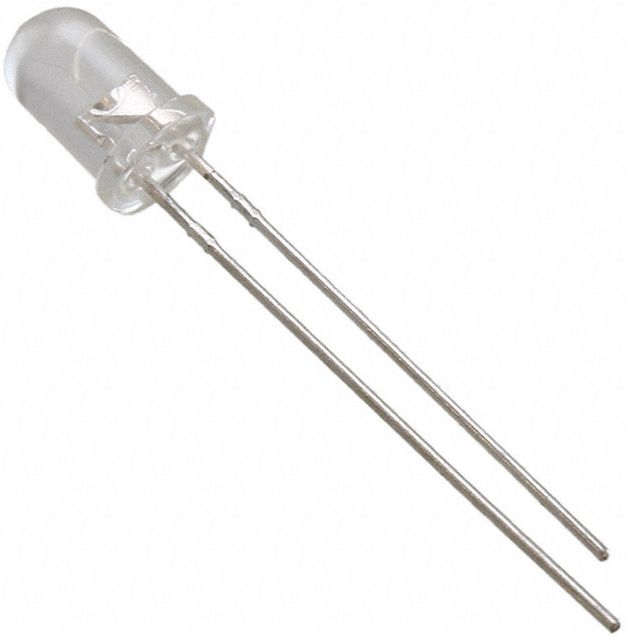

C503B-RCS-CW0Z0AA2 CREE

Symbol Micros: OL.C503B-RCS-CW0Z0AA2

482832

OL.C503B-RCS-CW0Z0AA2

Contractor Symbol:

Case : Rys.OL.C503B-RCS-CW0Z0AA2

Datasheet

Technical drawing Add to favourites

LED 5mm waterclear round red, 12000mcd Wavelength: 618nm - 630nm; Diode current: 20mA

Parameters

Brightness:	12000mcd
Colour:	Red
Diameter:	5mm
Forvard volatge [UF]:	2,1V
Forward current:	20mA
Manufacturer:	Cree
Mounting:	THT

All parameters

Manufacturer:: Cree Led Manufacturer part number: C503B-RCS-CW0Z0AA2 Case style: Rys.OL.C503B-RCS-CW0Z0AA2

External warehouse:

27500 pcs.

Quantity of pcs.	2500+ (Please wait for the order confirmation)
Net price (EUR)	0,0967

Add inquiry (RFQ)

Packaging:
2500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Brightness:	12000mcd
Colour:	Red
Diameter:	5mm
Forvard volatge [UF]:	2,1V
Forward current:	20mA
Manufacturer:	Cree
Mounting:	THT
Operating temperature (range):	-40°C ~ 100°C
Optical power:	130mW
Viewing angle:	30°
Wavelength (nm):	630nm
Wavelength range:	618nm ~ 630nm
