D12U1WT86 ROHM

Symbol Micros: OL.D12U1WT86

501245

OL.D12U1WT86

Contractor Symbol:

Case : Rys.D12U1WT86

Datasheet

Technical drawing Add to favourites

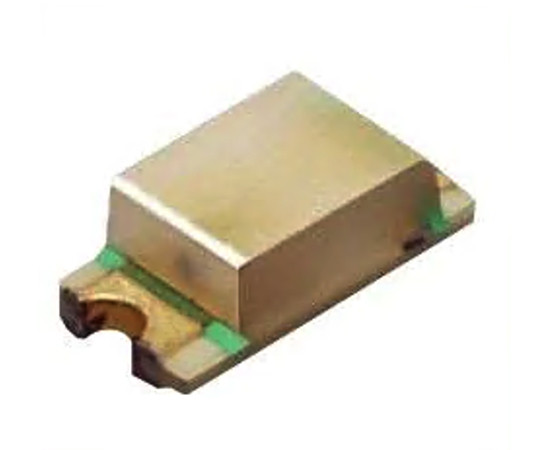

LED SMD 0603; red; luminosity: 63mcd; Forward current: 20mA Wavelength: 615-625nm; transparent; forward voltage: 1,5-2,7V; power: 54mW

Parameters

Brightness:	40mcd ~ 100mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
LED colours:	Red
LED diode current:	20mA
Manufacturer:	ROHM

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	40mcd ~ 100mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
LED colours:	Red
LED diode current:	20mA
Manufacturer:	ROHM
Mounting:	SMD
Nominal voltage:	1,5V ~ 2,7V
Operating temperature (range):	-40°C ~ 85°C
Power:	54mW
Wavelength range:	615nm ~ 625nm
