H100CGD BIVAR

Symbol Micros: OL.H100CGD

530629

OL.H100CGD

Contractor Symbol:

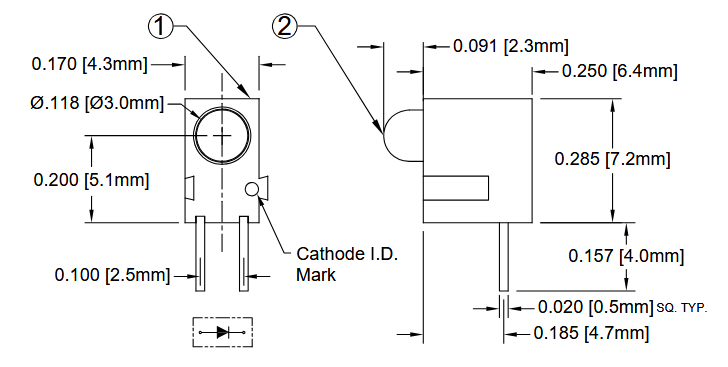

Case : Rys.OL.H100CGD

Datasheet

Technical drawing Add to favourites

LED in housing green, THT, 3mm, diode current: 20mA Viewing angle: 45°, luminosity: 30mcd; wavelength: 565nm, working voltage: 2,2V ~ 2,6V

Parameters

Dimensions:	12,4x5,1x4,3mm
Height:	7,2mm
Mounting hole diameter:	3mm
LED colours:	Green
Manufacturer:	BIVAR
Brightness:	30mcd
Nominal voltage:	2,2V ~ 2,6V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	12,4x5,1x4,3mm
Height:	7,2mm
Mounting hole diameter:	3mm
LED colours:	Green
Manufacturer:	BIVAR
Brightness:	30mcd
Nominal voltage:	2,2V ~ 2,6V
Case material:	Plastic
Housing colour:	Black
Viewing angle:	45°
Wavelength range:	565nm
