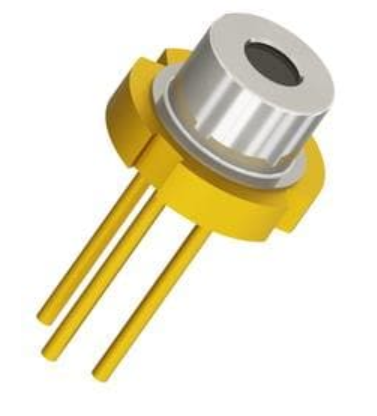

RLD90QZWA-10A ROHM Semiconductor

Symbol Micros: OL.RLD90QZWA-10A

411259

OL.RLD90QZWA-10A

Contractor Symbol:

Case : Rys.OL.RLD90QZWA-10A

Datasheet

Technical drawing Add to favourites

laser diode; wavelenght: 895-915nm; output power: 15W; forward current: 6A Operating voltage: 13-20V; operating temperature: -40°C ~ 85°C

Parameters

Forward current:	6A
Forvard volatge range:	13V ~ 20V
Power:	15W
Wavelength range:	895nm ~ 915nm
Operating temperature (range):	-40°C ~ 85°C
Diameter:	5,6mm
Mounting:	THT

All parameters

Manufacturer:: ROHM - Japan Manufacturer part number: RLD90QZWA-10A RoHS Case style: Rys.OL.RLD90QZWA-10A

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	12,6366	11,9855	11,5718	11,4190	11,2827

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Forward current:	6A
Forvard volatge range:	13V ~ 20V
Power:	15W
Wavelength range:	895nm ~ 915nm
Operating temperature (range):	-40°C ~ 85°C
Diameter:	5,6mm
Mounting:	THT
