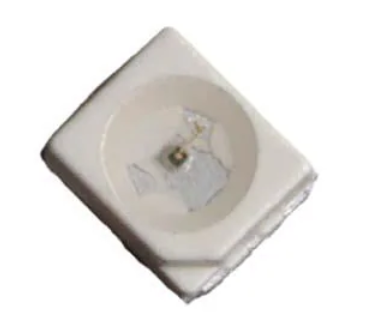

ASMT-CW20 Broadcom

Symbol Micros: OLB.ASMT-CW20

482349

OLB.ASMT-CW20

Contractor Symbol:

Case : Rys.OLB.ASMT-CW20

Datasheet

Technical drawing Add to favourites

LED SMD 0603; white; luminosity: 112,5-180mcd; viewing angle: 130°; diode current: 10mA Transparent; working voltage: 2,55-3,15V; power: 32mW

Parameters

Brightness:	112,5mcd ~ 180mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
LED colours:	White
LED diode current:	10mA
Manufacturer:	Broadcom

All parameters

Manufacturer:: BROADCOM Manufacturer part number: ASMT-CW20 RoHS Case style: Rys.OLB.ASMT-CW20

In stock:

70 pcs.

Quantity of pcs.	3+	10+	50+	200+	930+
Net price (EUR)	0,4275	0,2796	0,2006	0,1752	0,1645

Add to comparison tool Add inquiry (RFQ)

Packaging:
70 Quantity (multiple: 1)

- +

Manufacturer:: BROADCOM Manufacturer part number: ASMT-CW20 RoHS Case style: Rys.OLB.ASMT-CW20

In stock:

0 pcs.

Quantity of pcs.	3+	10+	50+	200+	930+
Net price (EUR)	0,4275	0,2796	0,2006	0,1752	0,1645

Add to comparison tool Add inquiry (RFQ)

Packaging:
930 Quantity (multiple: 1)

- +

• Parameters

Brightness:	112,5mcd ~ 180mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
LED colours:	White
LED diode current:	10mA
Manufacturer:	Broadcom
Mounting:	SMD
Nominal voltage:	2,55V ~ 3,15V
Operating temperature (range):	-40°C ~ 85°C
Power:	32mW
Viewing angle:	130°
