OSM5DK3131A-12V OPTOSUPPLY

Symbol Micros: OLBC.3w3000-12V

105500

OLBC.3w3000-12V

Contractor Symbol:

Case : Rys.OLBC.3w3000-12v

Datasheet

Technical drawing Technical drawing Add to favourites

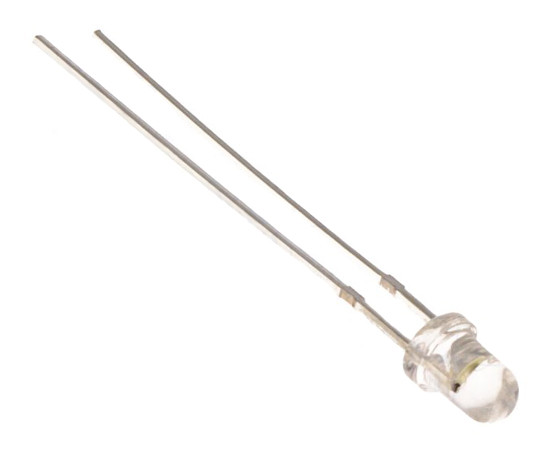

LED; THT; 3mm; warm white; luminosity: 2180~3000mcd Viewing angle: 30°, voltage: 12V; forward current: 10-15mA

Parameters

Colour:	Warm white
Brightness:	2180mcd ~ 3000mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Chromatic coordinates:	X:0.45; y:0.41
Forward current (range):	10mA ~ 15mA
Operating temperature (range):	-30°C ~ 85°C

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSM5DK3131A-12V RoHS Case style: Rys.OLBC.3w3000-12v Datasheet

In stock:

2980 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,5853	0,3549	0,2727	0,2445	0,2341

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1000 Quantity (multiple: 1)

- +

• Parameters

Colour:	Warm white
Brightness:	2180mcd ~ 3000mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Chromatic coordinates:	X:0.45; y:0.41
Forward current (range):	10mA ~ 15mA
Operating temperature (range):	-30°C ~ 85°C
Mounting:	THT
Diameter:	3mm
