WEJT28AW7-6XHP01

Symbol Micros: OLBZ.PLCC2.9

111748

OLBZ.PLCC2.9

Contractor Symbol:

Case : Rys.PLCC2

Datasheet

Technical drawing Add to favourites

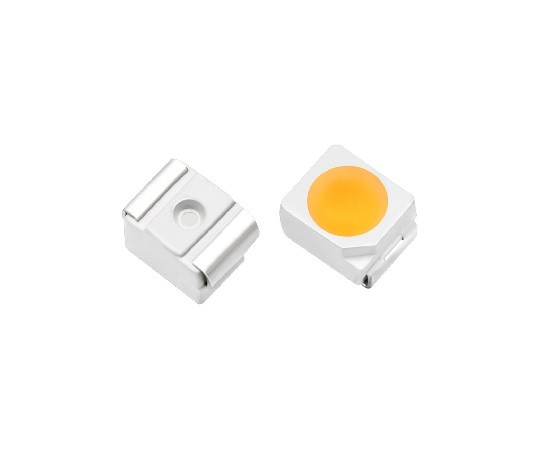

3528 (PLCC2) LED; cold white (5000-7000K); luminosity: 6 - 9 lm viewing angle 120°; IF=20mA; VF=2.8 - 3.4V

Parameters

Manufacturer:	WEJ
Diode type:	LED
Mounting:	SMD
Case:	3528 (PLCC2)
LED colours:	Cold white
Brightness:	6 - 9 lm
Viewing angle:	120°

All parameters

Manufacturer:: WEJ Manufacturer part number: WEJT25AW8-SWMP01 RoHS Case style: Rys.PLCC2

In stock:

4000 pcs.

Quantity of pcs.	10+	50+	200+	1000+	4000+
Net price (EUR)	0,1021	0,0404	0,0237	0,0174	0,0157

Add to comparison tool Add inquiry (RFQ)

Packaging:
4000 Quantity (multiple: 10)

- +

• Parameters

Manufacturer:	WEJ
Diode type:	LED
Mounting:	SMD
Case:	3528 (PLCC2)
LED colours:	Cold white
Brightness:	6 - 9 lm
Viewing angle:	120°
LED diode current:	20mA
Diameter:	2,4mm
Forvard volatge range:	2.8 - 3.4V
Colour temperature:	5000K
Operating temperature (range):	-25°C ~ 85°C
Chromatic coordinates:	X: 0,32; Y: 0,34
