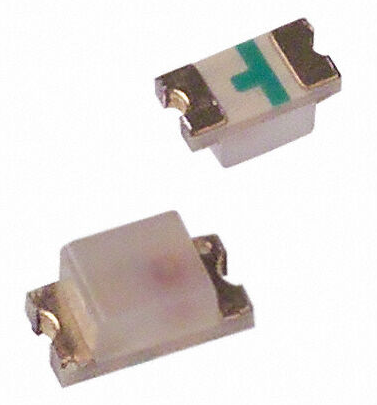

LED SMD 0603 red diffused; 90mcd; diffused

Symbol Micros: OLC.03c090

396728

OLC.03c090

Contractor Symbol:

Case : HSMC-C190

Datasheet

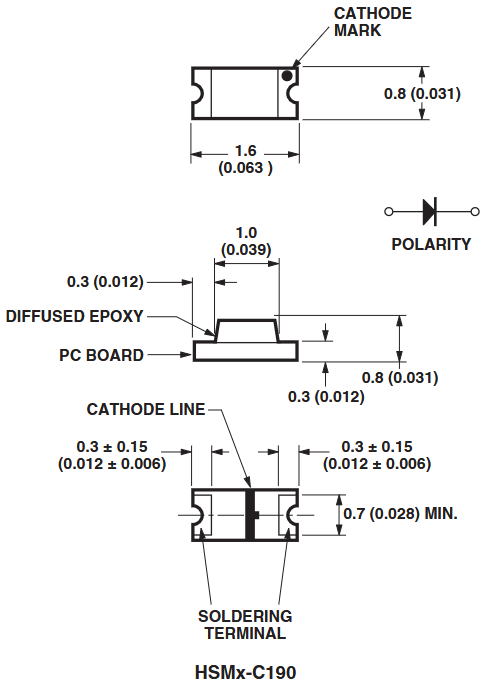

Technical drawing Add to favourites

Conductive voltage: 1,9V; Broadcom;

Parameters

Brightness:	90mcd
Case:	0603
Diode type:	LED
Forvard volatge [UF]:	1,9V
LED colours:	Red
LED diode current:	20mA
Manufacturer:	Broadcom

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	90mcd
Case:	0603
Diode type:	LED
Forvard volatge [UF]:	1,9V
LED colours:	Red
LED diode current:	20mA
Manufacturer:	Broadcom
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	170°
Wavelength (nm):	626nm
