150060RS75003 Würth Elektronik

Symbol Micros: OLC.150060RS75003

528962

OLC.150060RS75003

Contractor Symbol:

Case : Rys.OLC.150060RS75003

Datasheet

Technical drawing Add to favourites

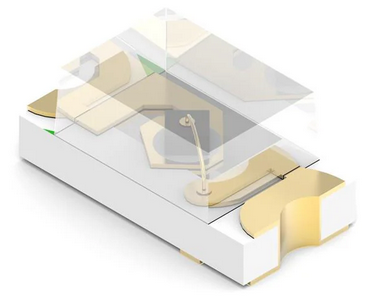

LED SMD 0603 red; luminosity: 230-800mcd; diode current: 30mA Wavelenght: 615-635nm; viewing angle: 140°; operating voltage: 1,8-2,6V; power: 78mW

Parameters

Manufacturer:	Würth Elektronik
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	230mcd ~ 800mcd
Viewing angle:	140°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Würth Elektronik
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	230mcd ~ 800mcd
Viewing angle:	140°
LED diode current:	30mA
Diode lens:	Water clear
Power:	78mW
Front:	Flat
Nominal voltage:	1,8V ~ 2,6V
Wavelength range:	615nm ~ 635nm
Operating temperature (range):	-40°C ~ 85°C
