WEJ314RD-A15-B2E0

Symbol Micros: OLC.3m0120

117718

OLC.3m0120

Contractor Symbol:

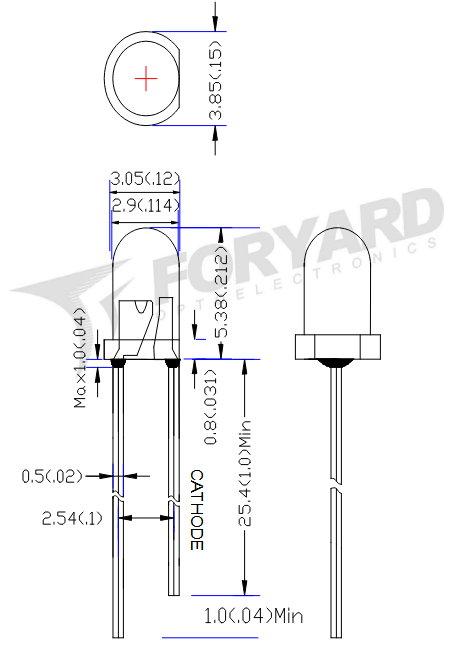

Case : Rys.OLC.3m0120

Datasheet

Add to favourites

LED; THT; 3 mm; red; 20~80mcd; 630~650nm; 30mA; 50°; 1.8~2.2V; -25~+85°C; diffused

Parameters

Diode type:	LED
Mounting:	THT
LED colours:	Red
Brightness:	20~80mcd
Viewing angle:	50°
LED diode current:	30mA
Wavelength range:	630~650nm

All parameters

Manufacturer:: WEJ Manufacturer part number: WEJ314RD-A15-B2E0 RoHS Case style: Rys.OLC.3m0120

In stock:

510 pcs.

Quantity of pcs.	5+	20+	100+	510+	2550+
Net price (EUR)	0,1185	0,0544	0,0296	0,0220	0,0198

Add to comparison tool Add inquiry (RFQ)

Packaging:
510 Quantity (multiple: 1)

- +

Manufacturer:: WEJ Manufacturer part number: WEJ314RD-A15-B2E0 RoHS Case style: Rys.OLC.3m0120

In stock:

37 pcs.

Quantity of pcs.	5+	20+	100+	510+	2550+
Net price (EUR)	0,1185	0,0544	0,0296	0,0220	0,0198

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/3000 Quantity (multiple: 1)

- +

• Parameters

Diode type:	LED
Mounting:	THT
LED colours:	Red
Brightness:	20~80mcd
Viewing angle:	50°
LED diode current:	30mA
Wavelength range:	630~650nm
Diameter:	3mm
Forvard volatge range:	1,8~2,2V
Operating temperature (range):	-25°C ~ 85°C
