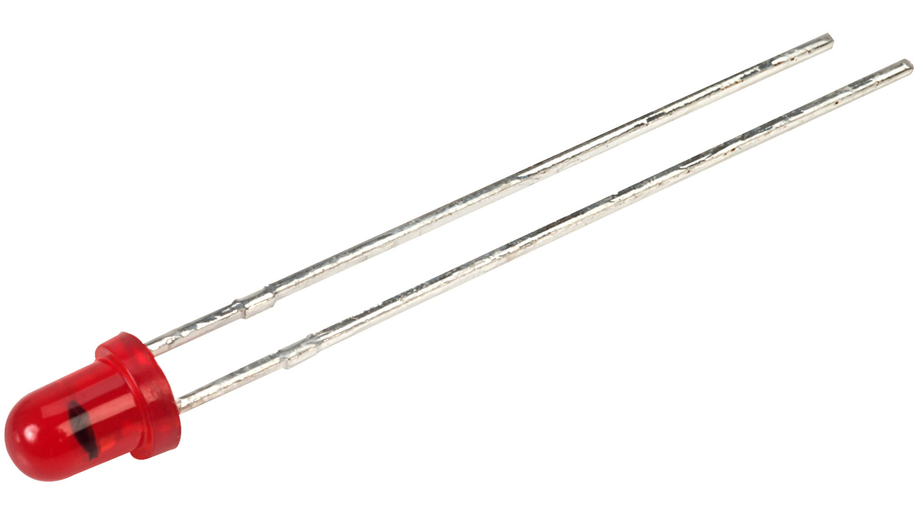

L-36BID Kingbright

Symbol Micros: OLC.3mB0020-Kingbright

542067

OLC.3mB0020-Kingbright

Contractor Symbol:

Case : Rys.OLC.3mB0020-Kingbright

Datasheet

Technical drawing Add to favourites

LED THT; Diffused; Blinking; Colour: red; Luminosity: 12-20mcd; Viewing angle: 60°; Diode current: 22mA Wavelenght: 625-627nm; working voltage: 0,5-14V

Parameters

Brightness:	12mcd ~ 20mcd
Diameter:	3mm
Diode lens:	Diffusive
Diode type:	LED
LED colours:	Red
LED diode current:	22mA
Manufacturer:	KingBright

All parameters

Manufacturer:: KingBright Manufacturer part number: L-36BID RoHS Case style: Rys.OLC.3mB0020-Kingbright

In stock:

500 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0133	0,6740	0,5579	0,5032	0,4827

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Brightness:	12mcd ~ 20mcd
Diameter:	3mm
Diode lens:	Diffusive
Diode type:	LED
LED colours:	Red
LED diode current:	22mA
Manufacturer:	KingBright
Mounting:	THT
Nominal voltage:	0,5V ~ 14V
Operating temperature (range):	-40°C ~ 70°C
Power:	310mW
Viewing angle:	60°
Wavelength range:	625nm ~ 627nm
