OSR5RU3131A-12V OPTOSUPPLY

Symbol Micros: OLC.3w1560-12V

105502

OLC.3w1560-12V

Contractor Symbol:

Case : Rys.OLC.3w1560-12v

Datasheet

Technical drawing Technical drawing Add to favourites

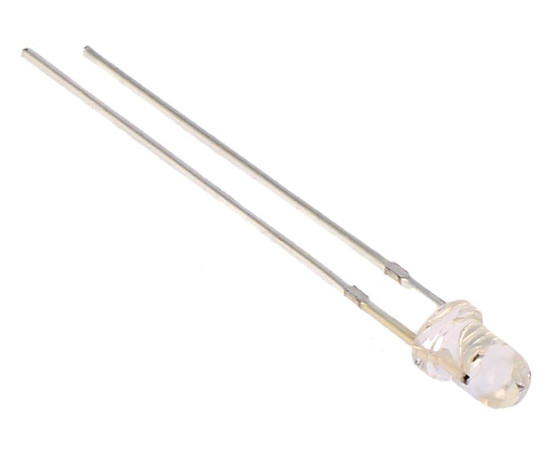

LED; THT; 3mm; red; 1120~1560mcd; 620~630nm; 10~15mA; 30°; 12V; -30~+85°C; waterclear

Parameters

Colour:	Red
Brightness:	1120~1560mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Forward current (range):	10mA ~ 15mA
Wavelength range:	620~630nm
Operating temperature (range):	-30°C ~ 85°C

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSR5RU3131A-12V RoHS Case style: Rys.OLC.3w1560-12v Datasheet

In stock:

1145 pcs.

Quantity of pcs.	3+	20+	100+	500+	1000+
Net price (EUR)	0,3761	0,2073	0,1631	0,1479	0,1448

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Colour:	Red
Brightness:	1120~1560mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Forward current (range):	10mA ~ 15mA
Wavelength range:	620~630nm
Operating temperature (range):	-30°C ~ 85°C
Mounting:	THT
Diameter:	3mm
